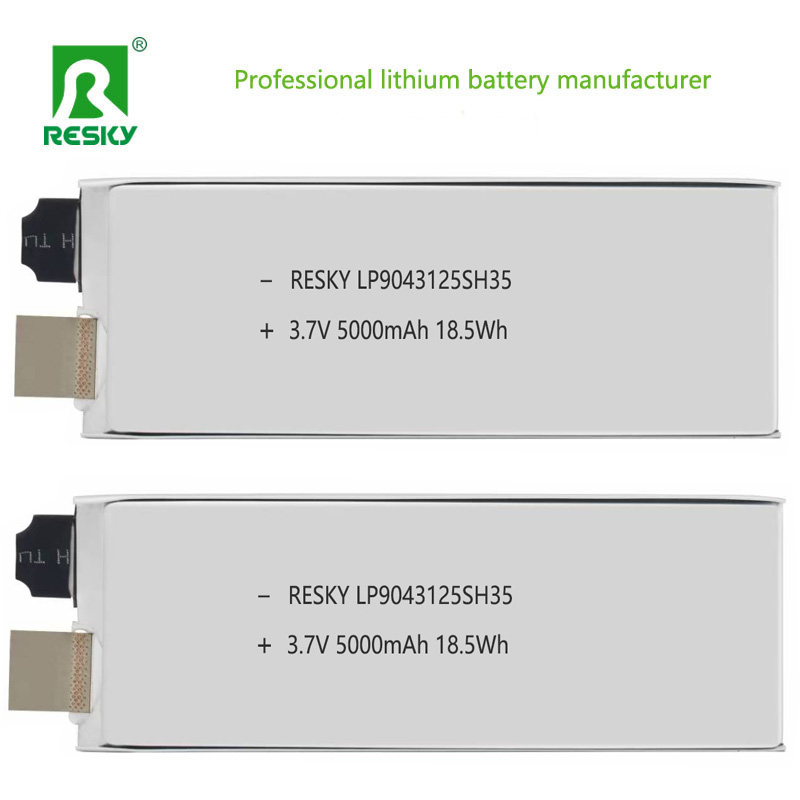

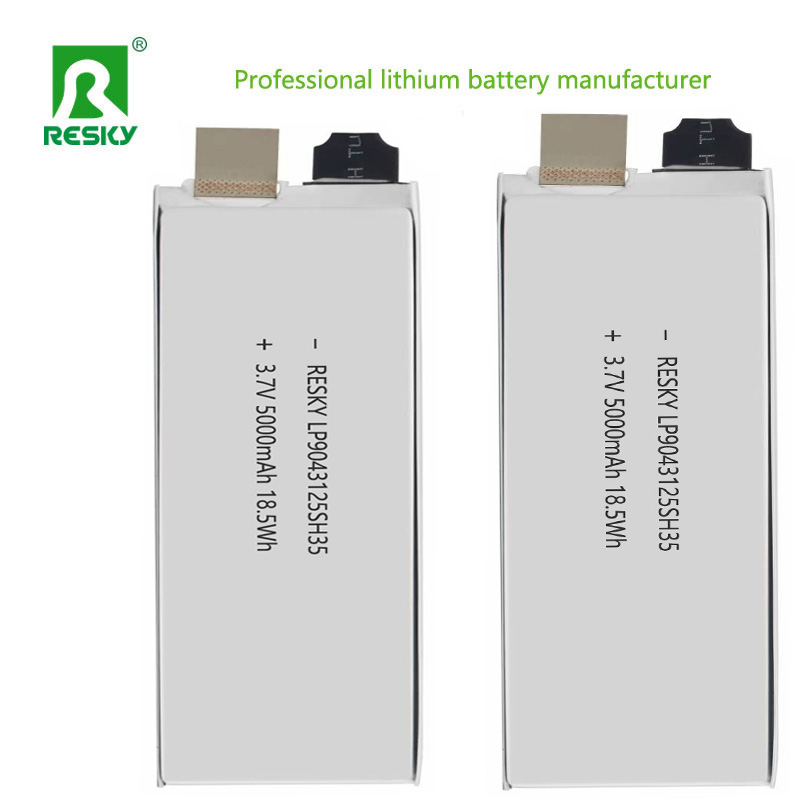

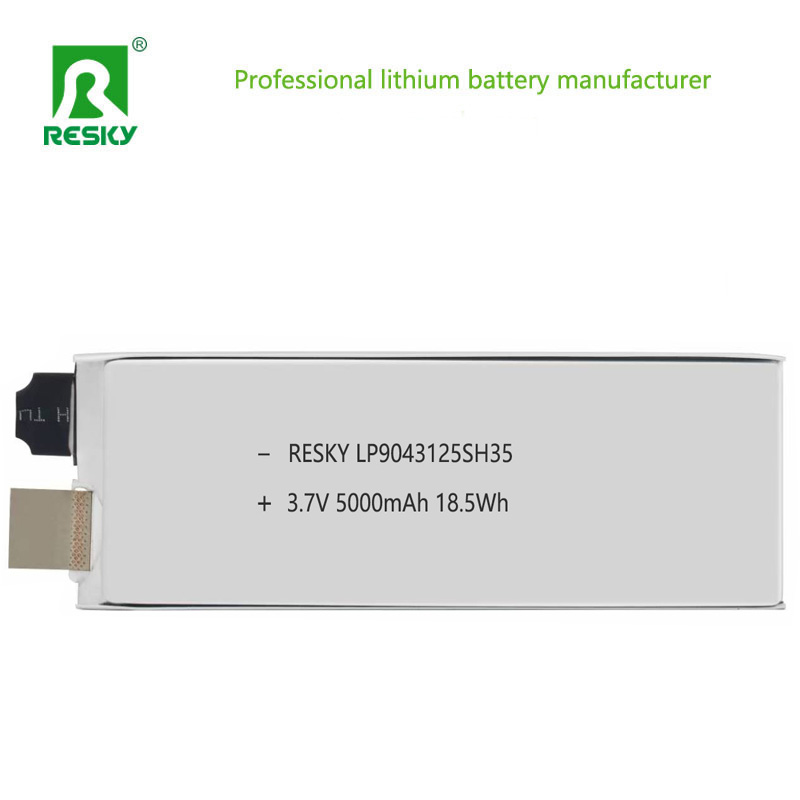

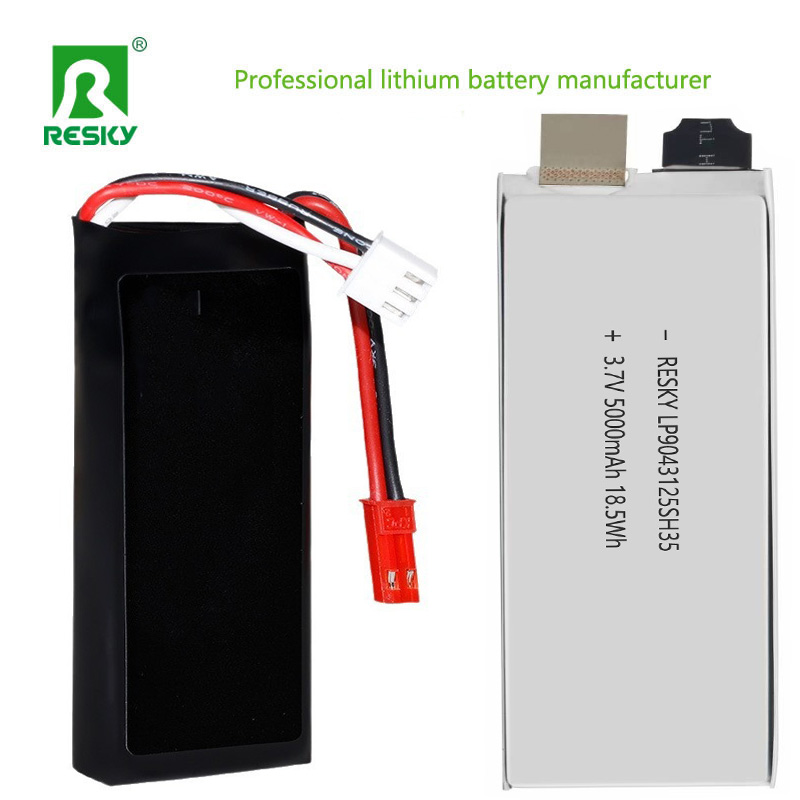

9043125 3.7v 7.4v 11.1v 5000mAh LiCoO2 Lithium Polymer Battery for RC Industrial
Model: LP9043125SH35
Voltage: 3.7v/7.4v/11.1v/14.8v/22.2V
Capacity: 5000mAh
Material: LiCoO2
Power:18.5Wh
Dimension: 9*43*125mm
Add to Wishlist
Add to Wishlist
Technical Specifications
| NO. | Items | Specifications |
|---|---|---|
| 1 | Batteries | 3.7V 5000mAh LiPo battery |
| 2 | Charge voltage | 4.2V |
| 3 | Nominal voltage | 3.7V |
| 4 | Nominal capacity | 5000mAh 35C Discharge |
| 5 | Charge current | Standard Charging: 0.2C Rapid charge: 1C |
| 6 | Standard Charging method | 0.5C CC charge to 4.2V, then CV charge till charge current decline to ≤0.05C |
| 7 | Charging time | Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.) |
| 8 | Max. charge current | 1C |
| 9 | Max. discharge current | 35.0C |
| 10 | Discharge cut-off voltage | 2.5V±0.25V (0.2C) |
| 11 | Operating temperature | Charging: 0°C ~ 45°C Discharging: 0°C ~ 45°C |
| 12 | Storage temperature | -10°C ~ +45°C |
| 13 | Dimension | Length: 125±0.5mm (not including tabs) Width: 43±0.5mm Thickness: 9±0.2mm |
| 14 | Drop Test | The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage |
| 15 | Cycle time | ≥500 times |
Key Features:
35C High-Rate Discharge, Strong Power Output
With 35C continuous discharge and 70C instantaneous burst, the battery provides stable and strong power output, no voltage collapse during high-load operation, ensuring excellent performance for high-power equipment.
Premium LiCoO2 Material, Stable Discharge Platform
Adopting high-purity lithium cobalt oxide cathode, the battery has a flat and stable discharge voltage platform, high energy density, fast charge acceptance, and reliable performance under continuous high-current output.
Ultra-Low Internal Resistance, High Efficiency & Long Life
Advanced laminated manufacturing process reduces internal resistance to ≤15mΩ, low heat generation, high discharge efficiency, and cycle life up to 300 times, reducing replacement cost and improving service life.
Soft Pack Structure, High Safety & Flexibility
Aluminum-plastic film soft package ensures excellent safety performance (no explosion risk under puncture, impact, short circuit). Customizable size and connector are available for flexible assembly.
Wide Temperature Adaptation, All-Scenario Application
Stable discharge in -20℃~60℃, suitable for outdoor, industrial and high-low temperature environments, with strong environmental adaptability.
Applications
RC Models: RC cars, RC boats, RC airplanes, FPV drones
Industrial Equipment: Power tools, industrial instruments, detection equipment
Mobile Devices: High-power speakers, portable power stations, medical devices
Special Equipment: Agricultural drones, emergency lighting, communication equipment
Why Choose Our 9043125 35C LiPo Battery?
Professional Grade: LiCoO2 high-rate formula, optimized for 35C long-term discharge.
Strict Quality Control: 100% capacity and rate testing before shipment, consistent performance.
Safety Guaranteed: Multiple protections against overcharge, over-discharge, short circuit and overcurrent.
Custom Service: Support OEM/ODM, customize voltage, capacity, connector and size.
FAQ:
Q1: What is 35C discharge rate?
A: 35C means the battery can discharge at 35 times the nominal capacity continuously. For 5000mAh battery, 35C = 5A × 35 = 175A continuous current.
Q2: Can this battery be used in series/parallel?
A: Yes. It can be assembled into battery packs (2S/3S/4S, etc.) for higher voltage/capacity, matching different equipment requirements.
Q3: What is the recommended charging current?
A: Recommended charging current: 1C (5A), maximum charging current: 2C (10A), to ensure cycle life and safety.
