Product Description
| NO. |
Items |
Specifications |
| 1 |
batteries |

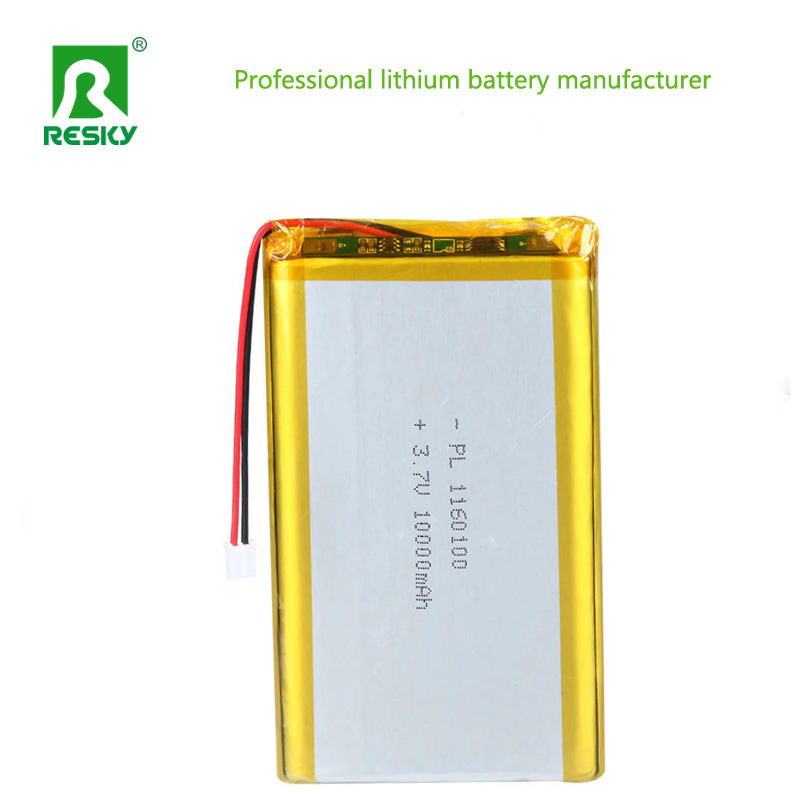

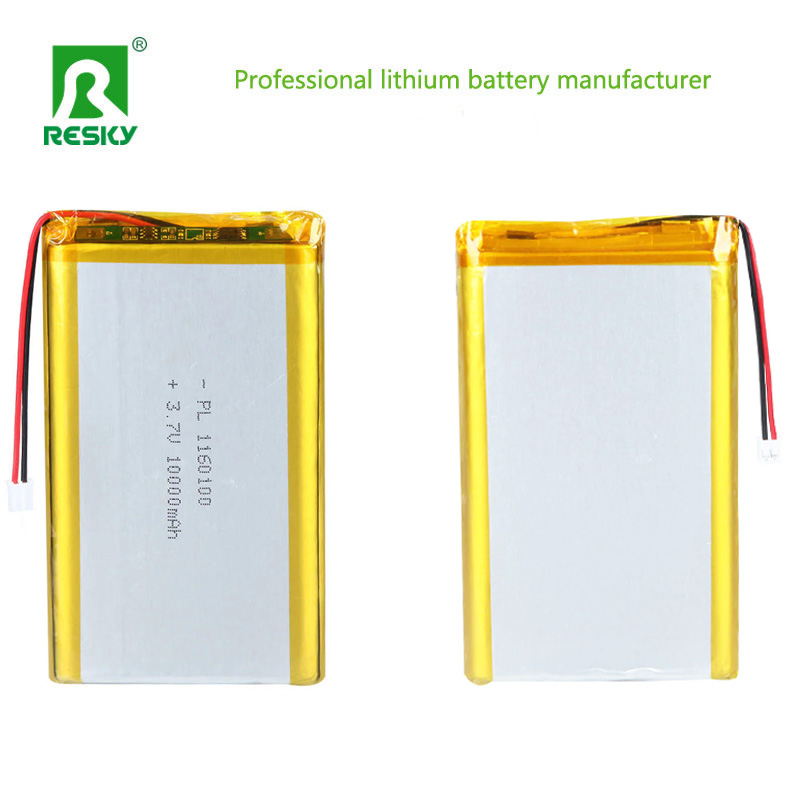

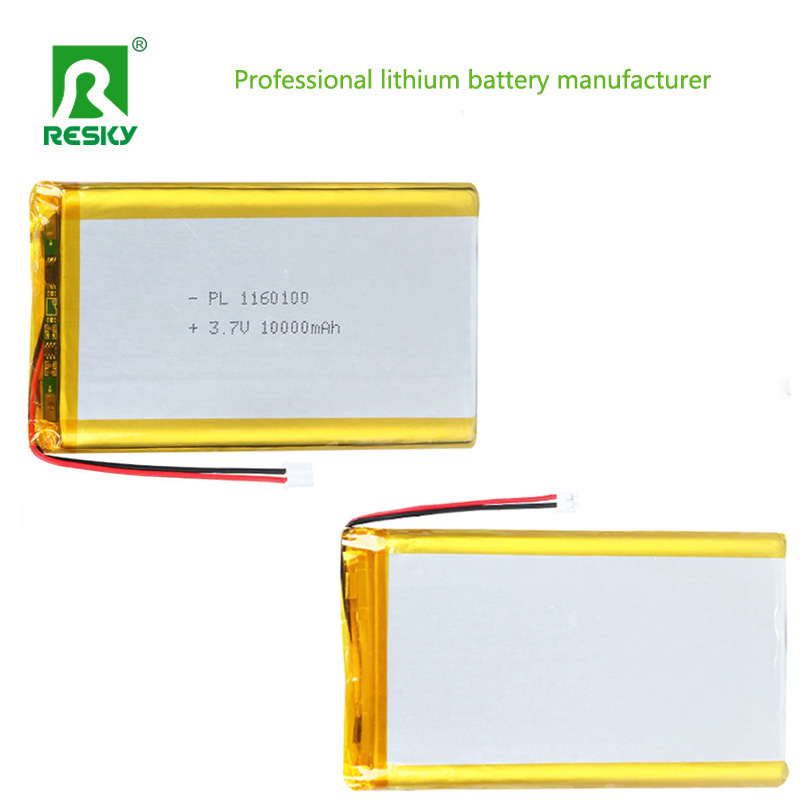

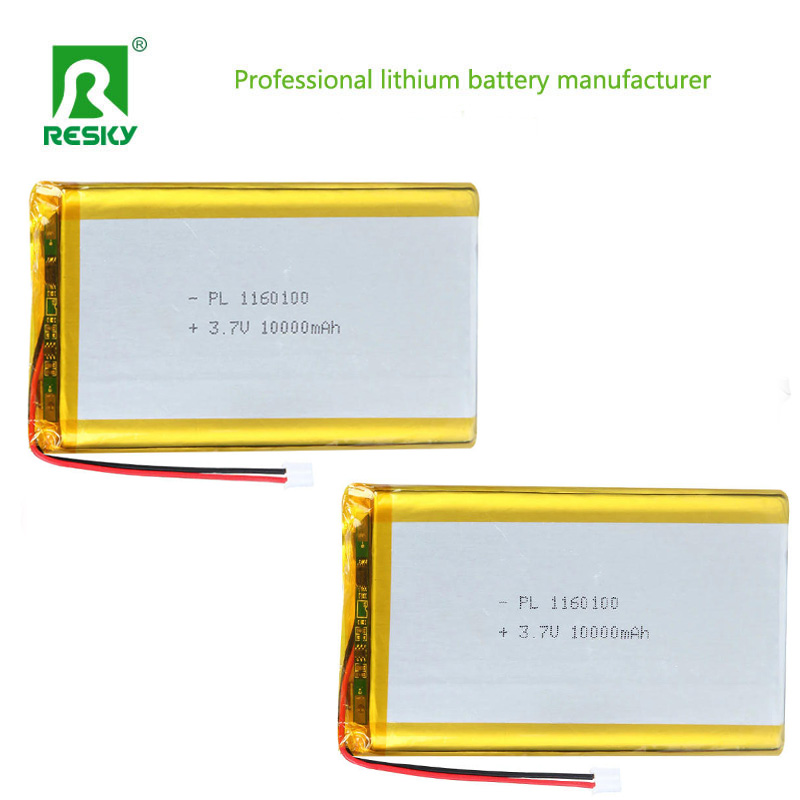

3.7v 10000mah lipo battery |
| 2 |
Charge voltage |
4.2V |
| 3 |
Nominal voltage |
3.7V |
| 4 |
Nominal capacity |
10000mAh 0.2C Discharge |
| 5 |
Charge current
|
Standard Charging:0.5C
Rapid charge: 1.0C |
| 6 |
Standard Charging method |
0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
| 7 |
Charging time
|
Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.) |
| 8 |
Max.charge current |
1.0C |
| 9 |
Max.discharge current |
1.0C |
| 10 |
Discharge cut-off voltage |
2.5V0.25V(0.2C) |
| 11 |
Operating temperature |
Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C |
| 12 |
Storage temperature |
-10°C~ +45 °C |
| 13 |
Dimension |
Length:100±2mm (not including tabs)
Width:60±0.5mm
Thickness:11±0.5mm |
| 14 |
Drop Test |
The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage |
| 15 |
cycle time |
≥500times |
Main Application:
1. Portable Energy Storage and Emergency Equipment
The mini outdoor power bank: With a 37Wh capacity, it meets aviation carry-on standards (<100Wh) and can power mobile phones (approximately 5 charges), tablets (2-3 charges), and action cameras (4-5 hours of battery life), making it ideal for camping and business trips.
Emergency Lighting: When paired with an LED light panel, it can provide 20-30 hours of continuous lighting (in low-brightness mode), making it suitable for home emergencies and outdoor work (such as nighttime maintenance).
2. Smart Home and Service Robots
Robot Sweeper (Thin): 11mm thickness fits a flat body, 10Ah capacity supports 2-3 hours of continuous cleaning (covering a 100-150㎡ apartment), and 0.5C discharge meets the motor’s continuous operation requirements.
Smart Companion Robot (Home): Thin design does not affect flexibility, 37Wh energy provides 8-10 hours of standby time and 2-3 hours of mobile interaction (such as voice conversation and obstacle avoidance).
3. IoT and Outdoor Monitoring Equipment
Outdoor 5G Micro Base Station Backup Power Supply: To cope with short power outages, it can maintain low-power operation for 4-6 hours, ensuring uninterrupted signal.
Smart Agricultural Monitoring Equipment: 10Ah capacity combined with a low-power module allows for 3-6 months of recharge-free operation, suitable for outdoor field environments (low temperature and rain protection require additional packaging). 4. Medical Assistance Equipment
Portable Ventilator (Home Use): 0.5C stable discharge ensures continuous air supply for 8-10 hours (in low-flow mode), and the thin design makes it easy for patients to carry around.
Mobile ECG Monitor: 10Ah capacity supports 24-48 hours of continuous monitoring, and voltage stability prevents data collection deviations, making it suitable for home or on-the-go diagnosis and treatment.
5. Small Electric Devices
Children’s Electric Balance Scooter (Mini): 1C peak discharge meets starting acceleration requirements, 10Ah capacity provides a range of 15-20 kilometers (in low-speed mode), and the thin design reduces vehicle weight.
Small Power Tools (such as mini drills and handheld vacuum cleaners): 0.5C continuous discharge supports 1-2 hours of operation, making it suitable for home DIY and car interior cleaning.
