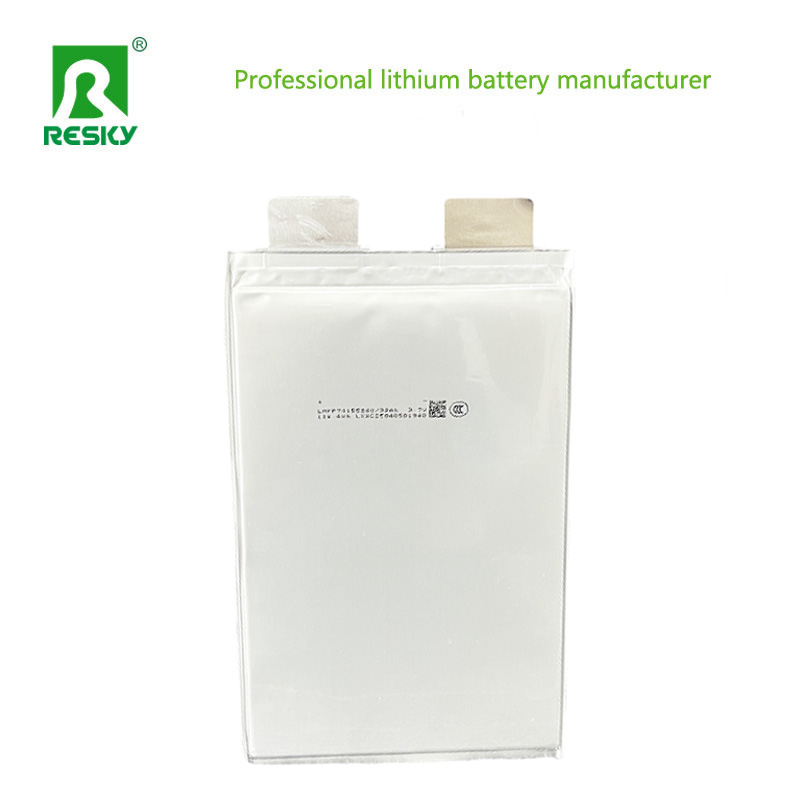

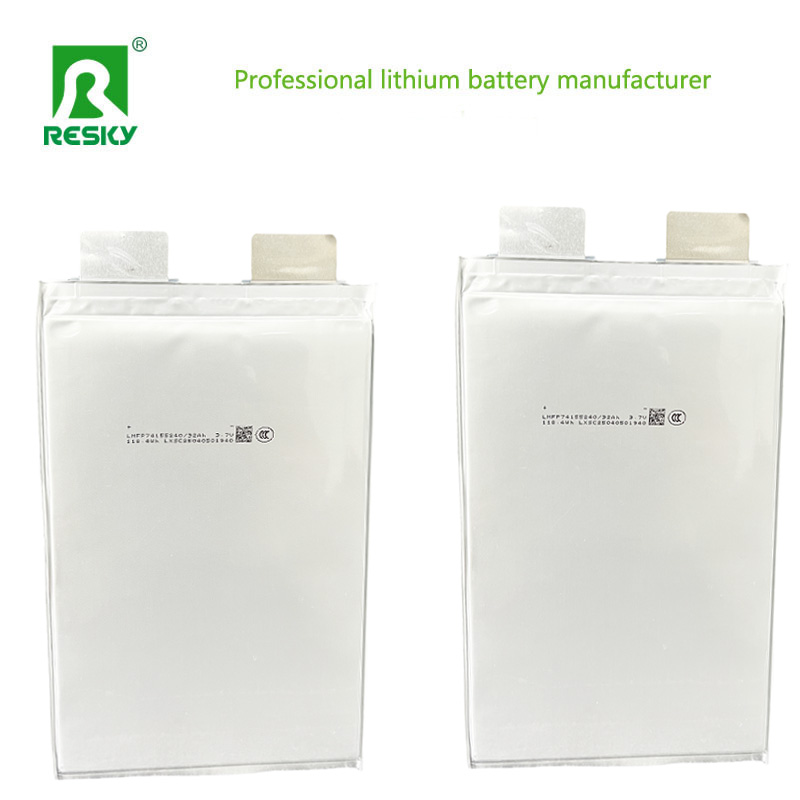

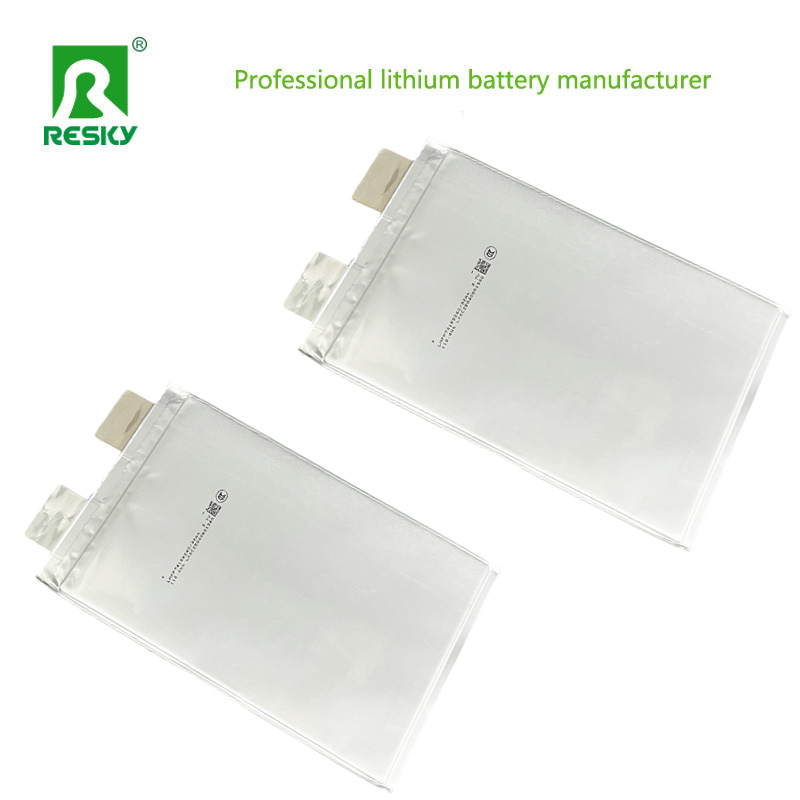

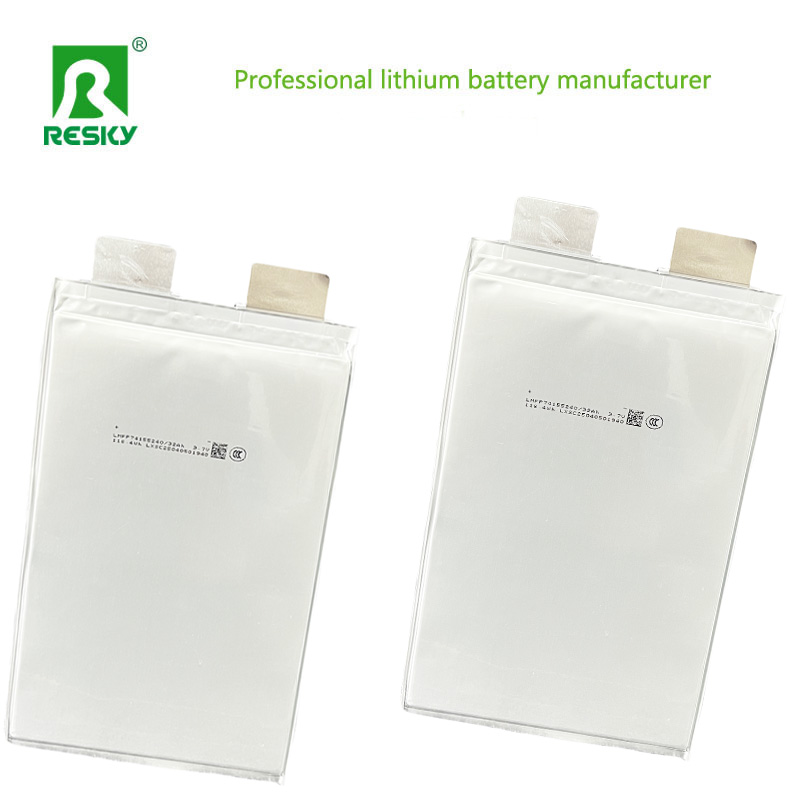

Lithium cell 74155240 3.7v 32Ah 118wh Rechargeable Lithium Polymer Battery Cell For Storage Ups
Voltage:3.7V
Capacity: 32Ah
Dimension:7.4*155*240mm
Specification:
Item
|
Information
|
Model
|
LMLP74155240
|
Nominal Voltage
|
3.7v
|
Max Charge Voltage
|
4.2v
|
AC lmpedance Resistance
|
≤0.9mΩ
|
Charging Temperature
|
-5-60℃
|
Discharging Temperature
|
-30-60℃
|
Cycle Life
|
≥1500 times
|
Weight
|
500g
|
Dimensions (L*w*H)
|
240*155*7.4mm
|
Applications
|
Electric Power Systems,Home Applicances,Electric vehicles,Golf cart,electric scooter, electric bicycle
|
Advantages:
High energy density and small size:
Polymer soft-pack lithium batteries have high energy density, small size but large capacity. Its volume energy density is higher than that of traditional lithium batteries, and is suitable for applications that require high energy density.
High safety:
Polymer soft-pack lithium batteries are wrapped in aluminum-plastic film. When there is a problem inside, they will only bulge and crack, but will not explode, and are relatively safe.
Light weight:
Compared with steel-shell batteries of the same capacity, they are 40% lighter and aluminum-shell batteries are 20% lighter, which is suitable for equipment that requires lightweight design.
Long cycle life:
Polymer soft-pack lithium batteries have a long cycle life of 800-1200 times, or even higher.
Low self-discharge rate:
Polymer soft-pack lithium batteries have a low self-discharge rate, and the capacity loss after long-term storage is minimal.
Flexible design:
The appearance can be customized to adapt to a variety of product forms, suitable for applications that require special-shaped batteries.
