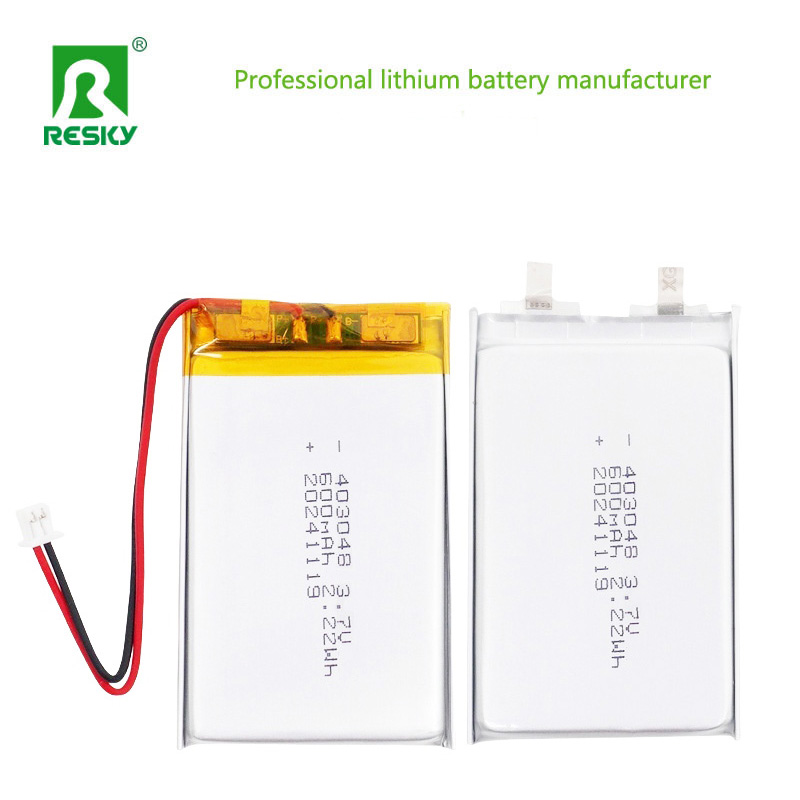

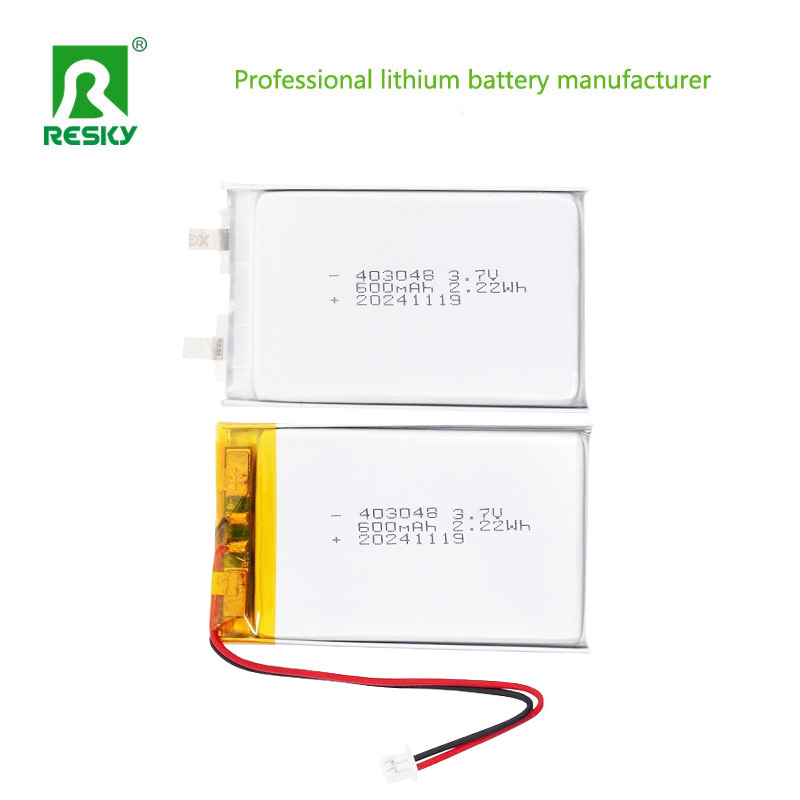

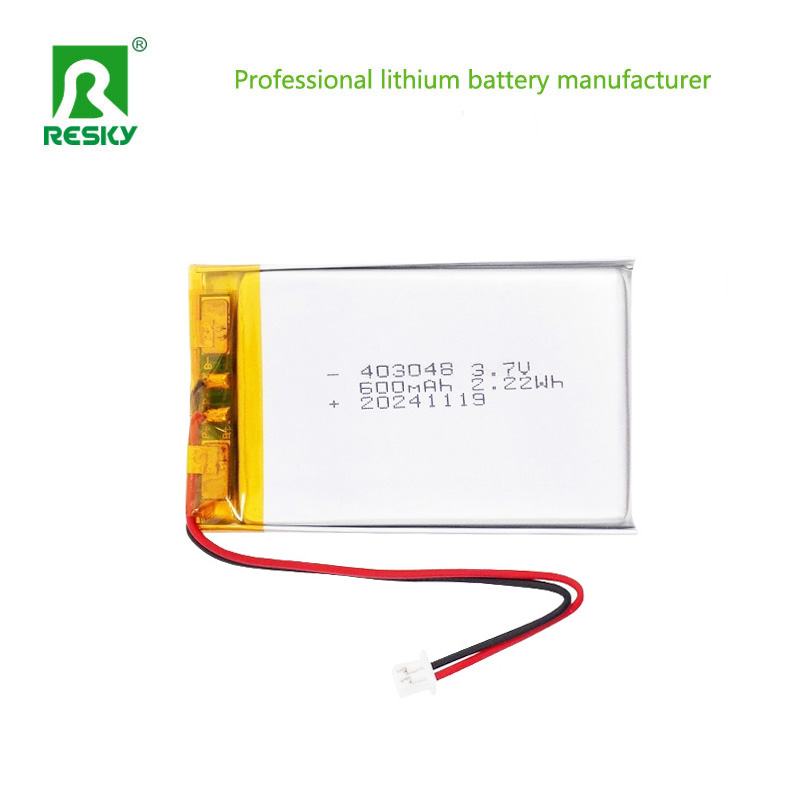

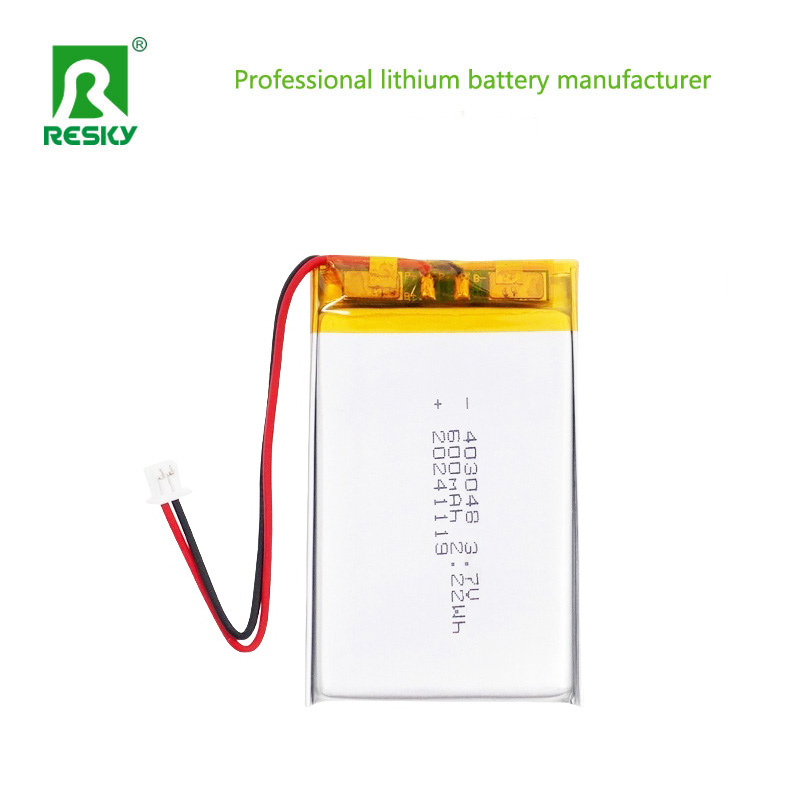

Lithium Polymer Battery 403048 3.7V 600mAh 2.22wh Lipo Battery Cell For Pet Gps Tracker

Model: LP403048

Voltage: 3.7V;

Capacity:600mAh;

Dimension:4*30*48mm;

Power: 2.22Wh.



Add to Wishlist
Add to Wishlist
Whatsapp

Specification:

NO. Items Specifications
1 batteries  3.7v 600mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 600mAh     0.2C Discharge
5 Charge current
        		 Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
        		 Standard Charging:2.75hours(Ref.)
       Rapid charge:     2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 48±2mm (not including tabs)
Width: 30±0.5mm
Thickness:4±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

Application:

Consumer Electronics:

Smartphones and Tablets: Li-poly batteries are the primary power source for these devices, enabling long battery life and compact designs.

Wearable Devices: From smartwatches to fitness trackers, Li-poly batteries provide the necessary power for extended use without adding significant weight.

Cameras: Digital cameras, especially mirrorless and DSLR models, often use Li-poly batteries to support high-energy operations like continuous shooting and video recording.

Military and Aerospace:

Portable Military Electronics: Li-poly batteries are used in various military devices for their high energy density and reliability.

Satellites and Spacecraft: In aerospace applications, Li-poly batteries are carefully engineered to meet strict safety and performance requirements.
