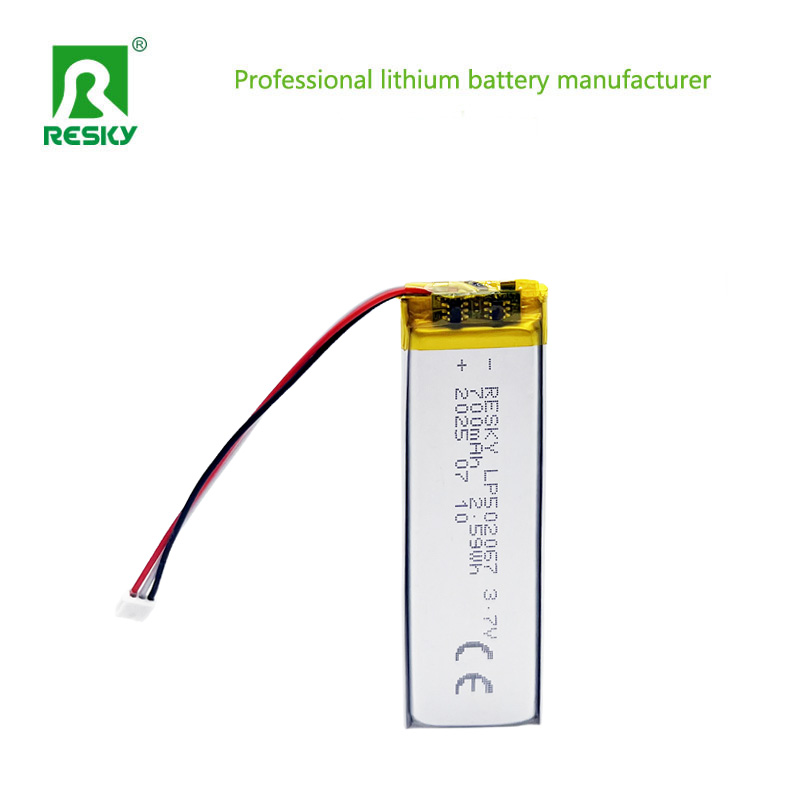

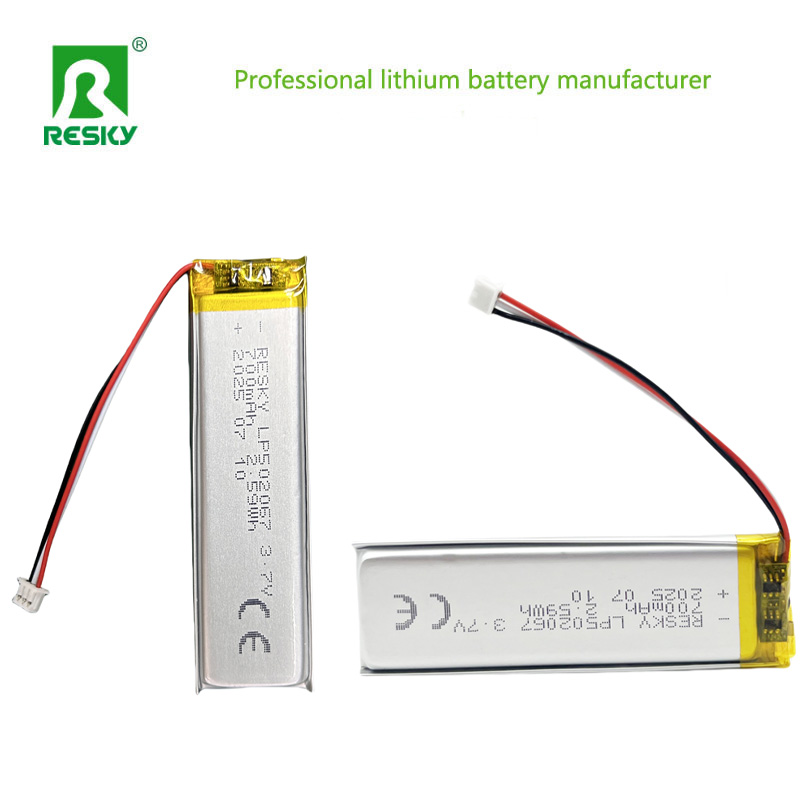

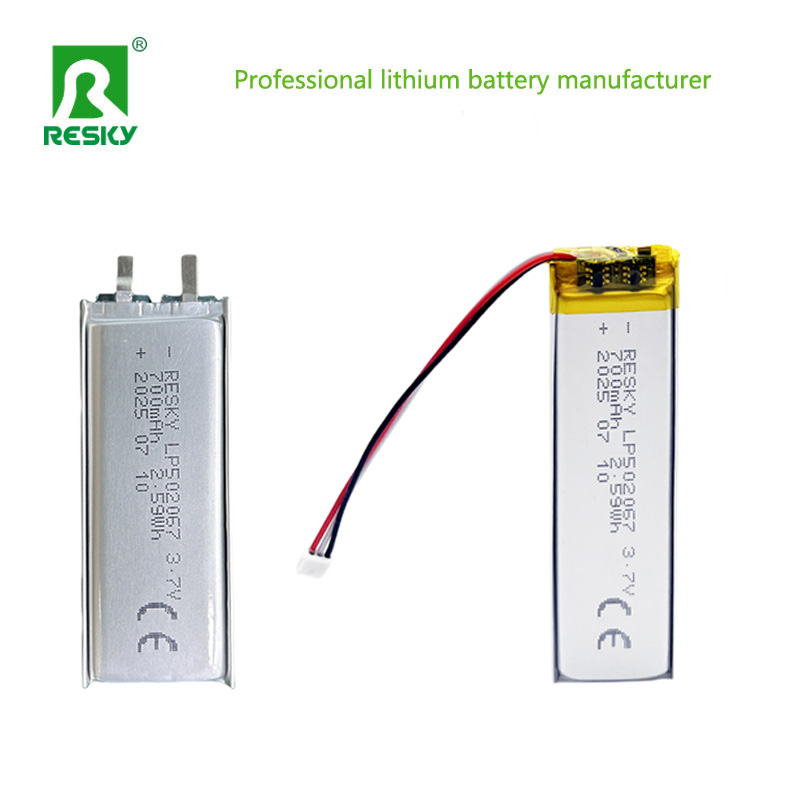

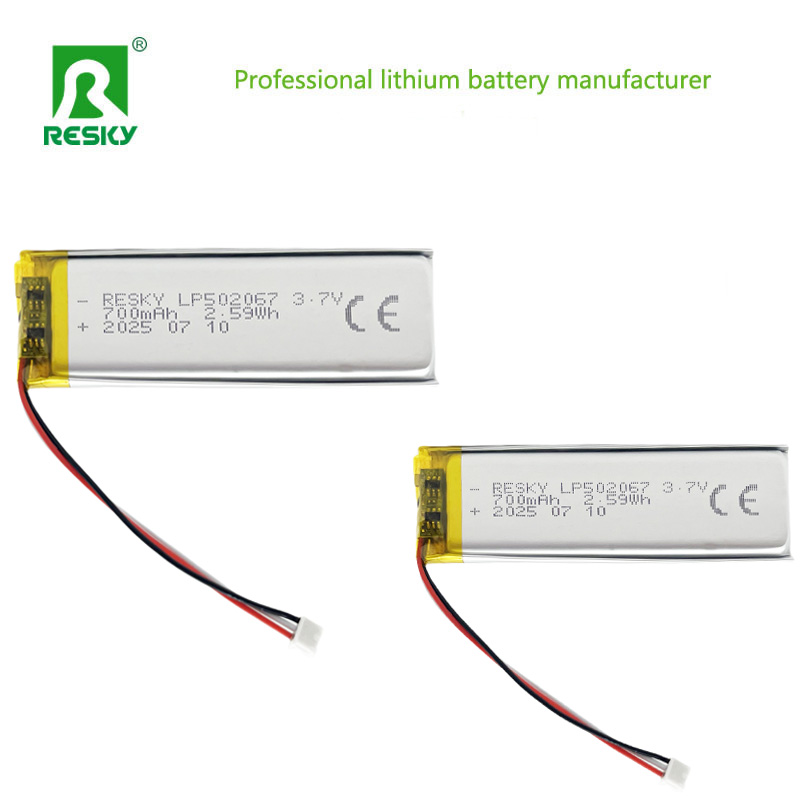

Rechargeable Lipo Battery 502067 3.7V 700mAh Lithium Cell For Handheld Beauty Devices

Voltage:3.7V

Capacity:700mAh

Dimension:5*20*67mm

Add to Wishlist
Add to Wishlist

Specification:

NO. Items Specifications
1 batteries  3.7v 700mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 700mAh     0.2C Discharge
5 Charge current

Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time

Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.75V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 67±2mm (not including tabs)
Width: 20±0.5mm
Thickness:5±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

Application:

1. Smartphones: Lithium polymer batteries provide high energy density for smartphones, allowing them to have longer battery life in a smaller size. Their thin, light and customizable features also meet the needs of mobile phones for thinner designs.

2. Tablets: They meet the requirements of tablets for battery capacity and portability, and support long-term use of devices.

3. Laptops: Compared with traditional batteries, they can provide higher energy, extend the use time of laptops, and also help to make computers thinner.

4. Bluetooth headsets: The compact lithium polymer battery provides long-lasting power support for the wireless use of Bluetooth headsets.

5. Smart watches and bracelets: Due to their customizable shapes, they can be well adapted to the designs of various smart wearable devices and ensure a certain battery life.
