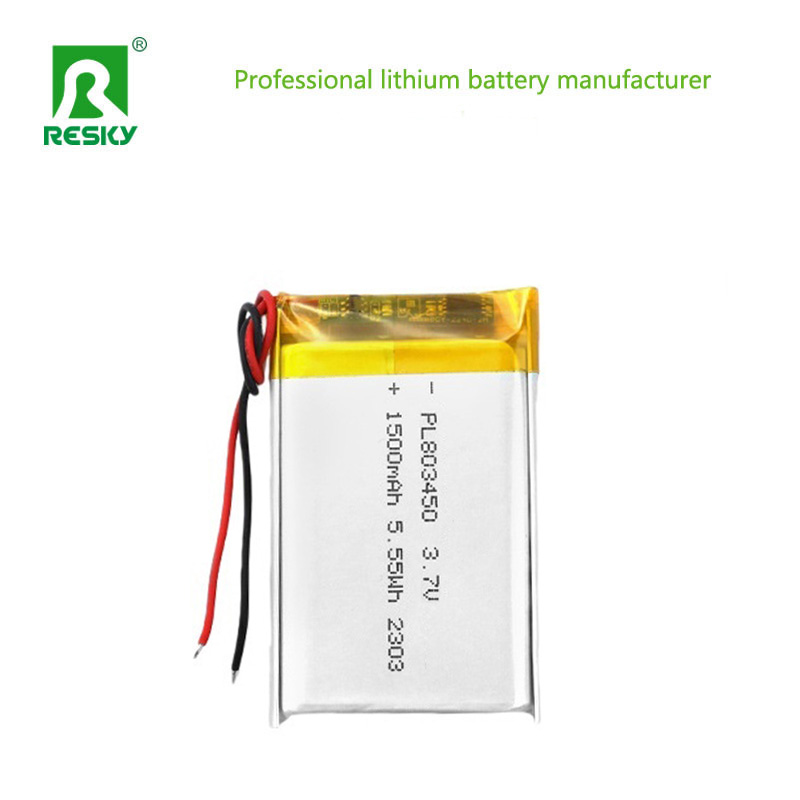

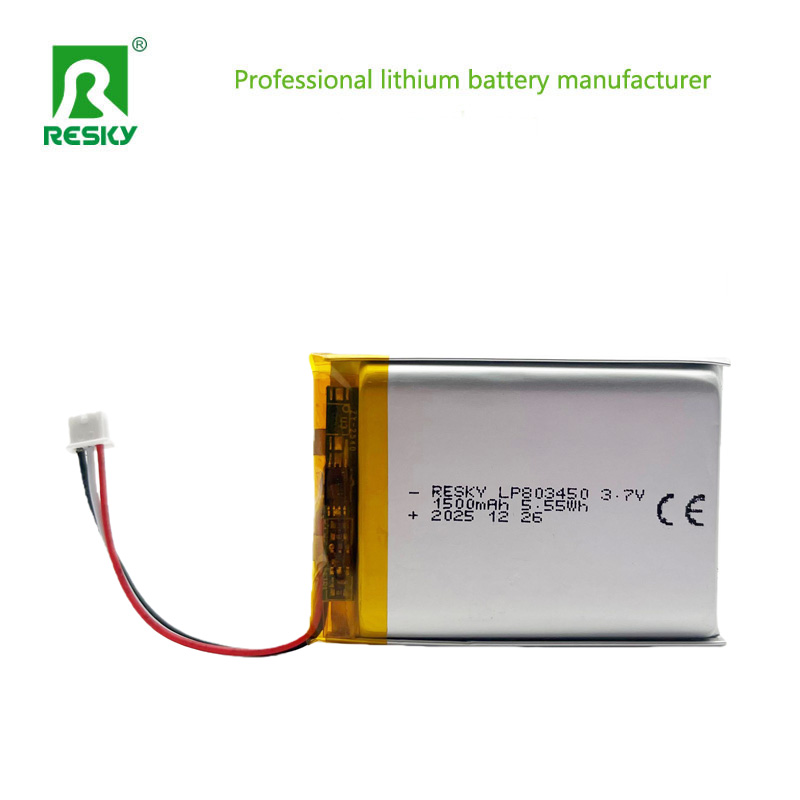

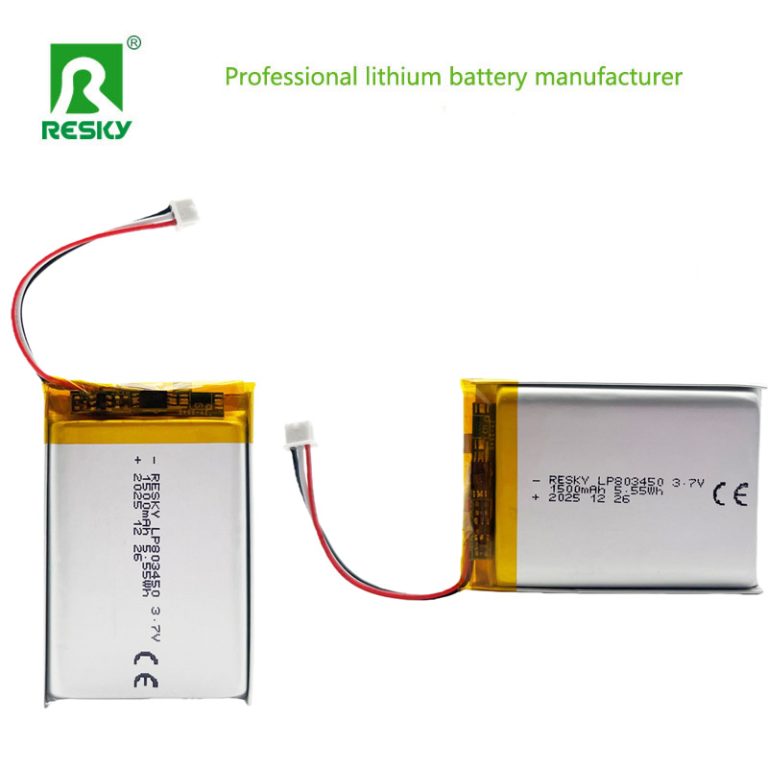

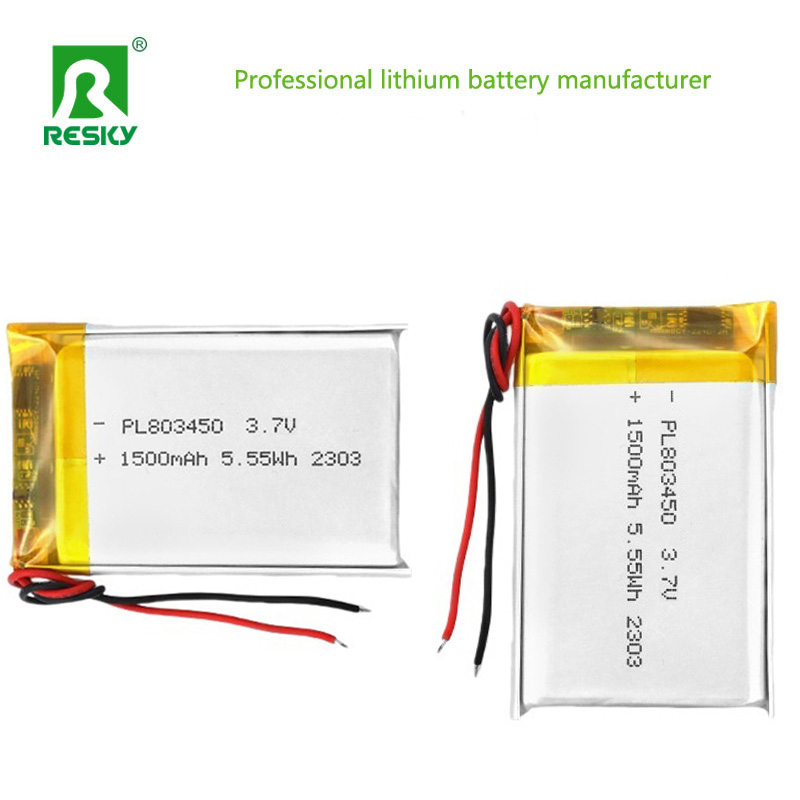

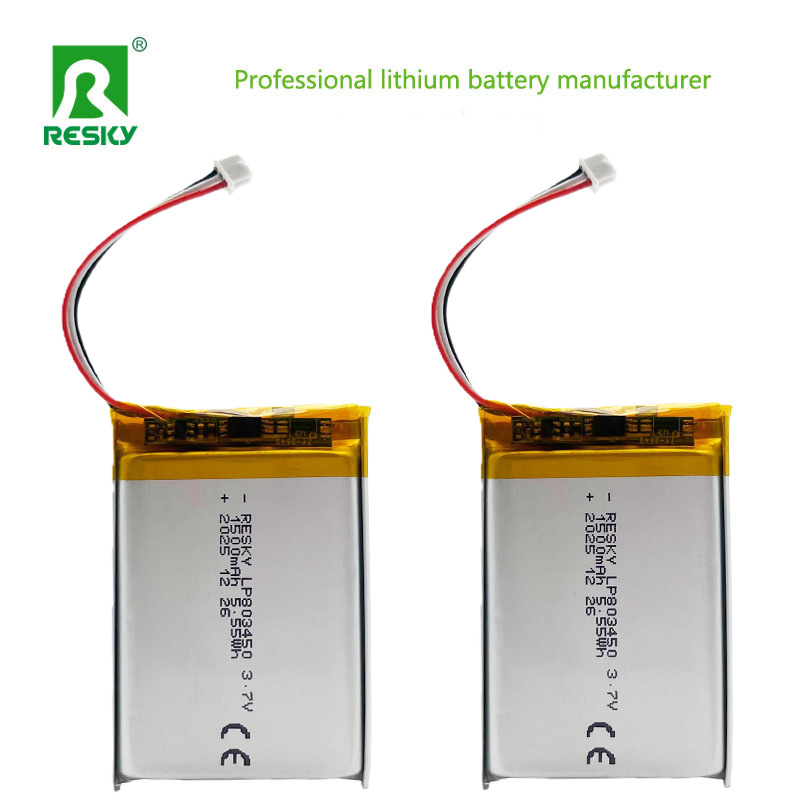

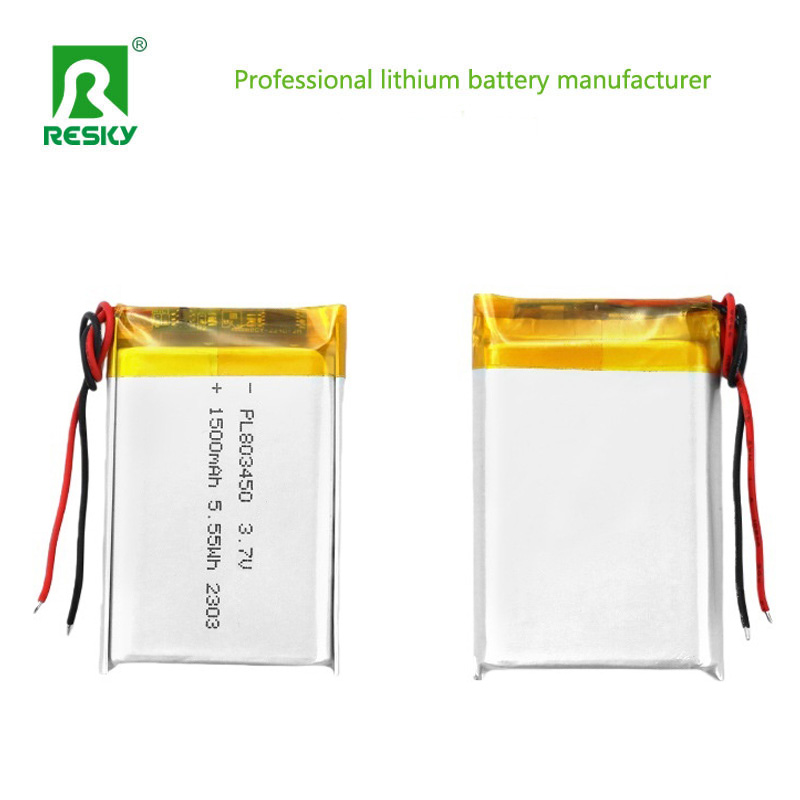

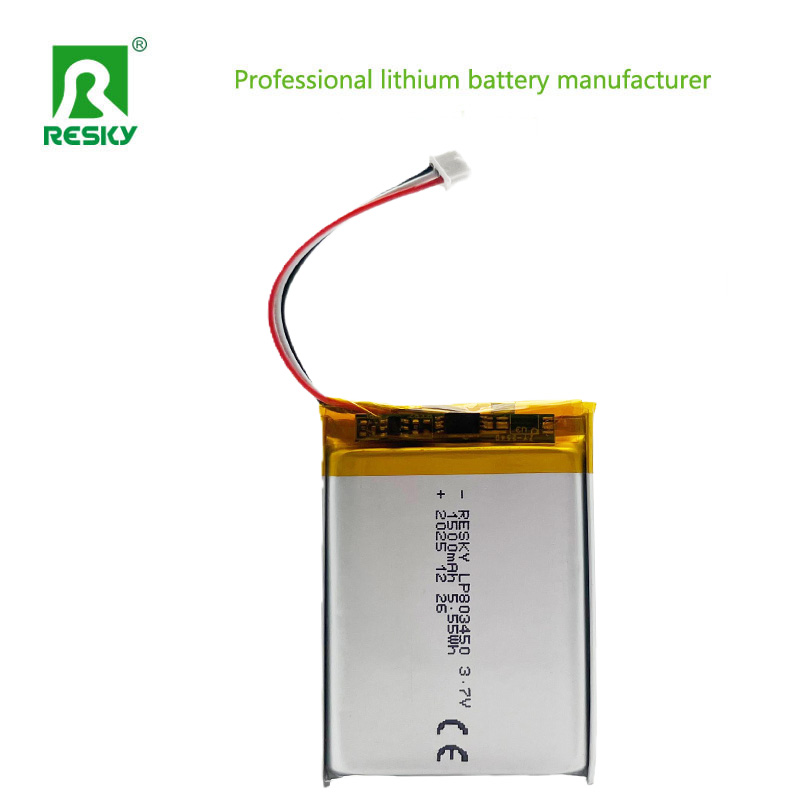

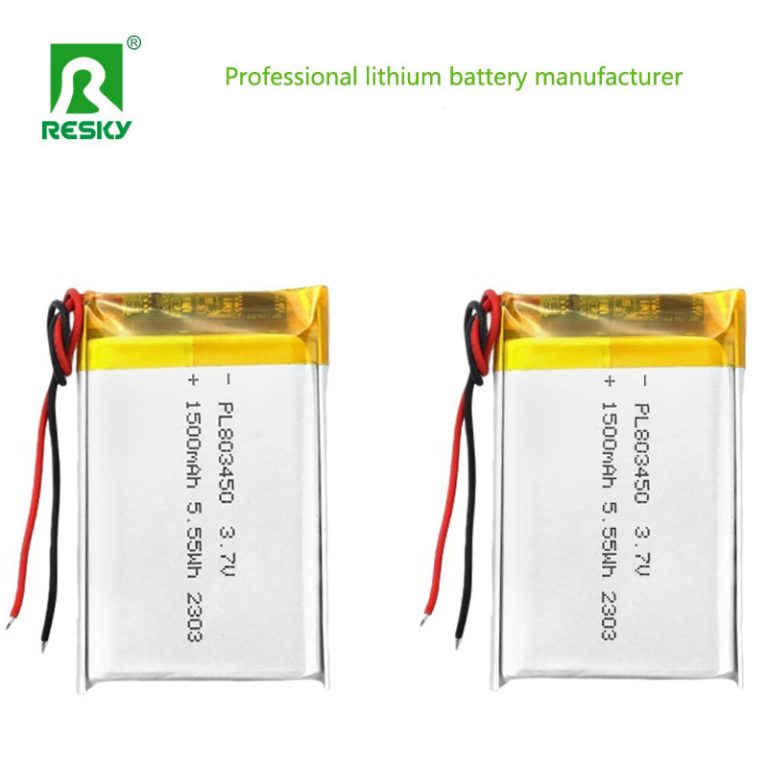

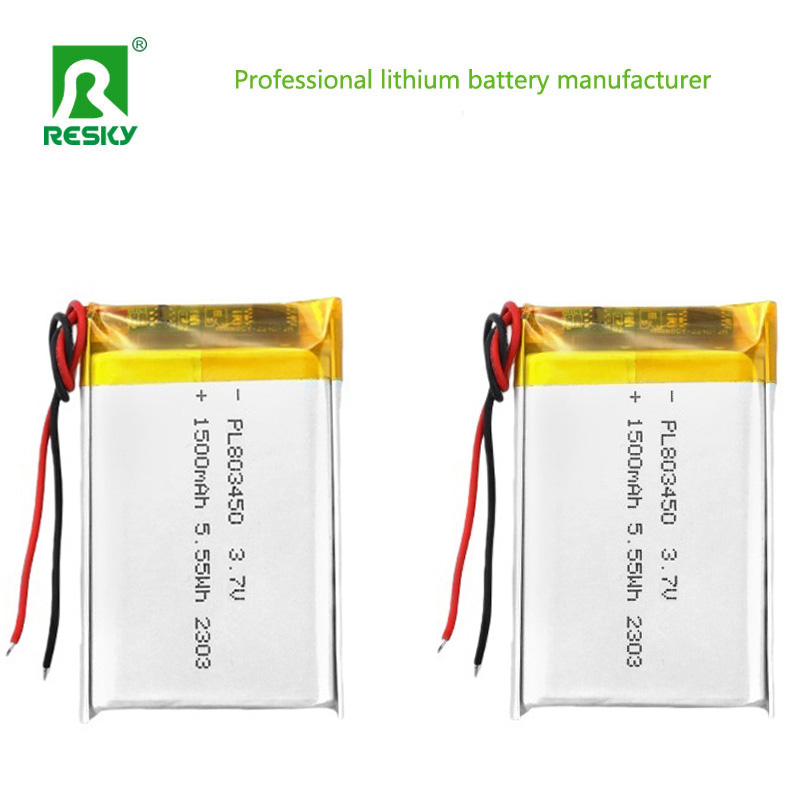

Square lipo batteries 803450 3.7v 1500mAh 5.55wh Rechargeable lithium Polymer Battery Pack

Model: RESKY LP803450
Voltage:3.7V
Capacity:1500mAh
Power:5.55wh
Dimension:8*34*50mm
MOQ:100PCS
Delivery time:7-10days
Web: www.szresky.com
Whatsapp: 0086 13530058480
Email: admin@szresky.com

Add to Wishlist
Add to Wishlist
Whatsapp
Technical Specifications

Batteries 3.7v 1500mah lipo battery
Charge voltage 4.2V
Nominal voltage 3.7V
Nominal capacity 1500mAh 0.2C Discharge
Charge current Standard Charging:0.5C
Rapid charge: 1.0C
Standard Charging method 0.2C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
Max.charge current 0.5C
Max.discharge current 1.0C
Discharge cut-off voltage 2.5V0.25V(0.2C)
Operating temperature Charging: 0°C ~45°C
Discharging:0°C ~45°C
Storage temperature -10°C~ +45°C
Dimension Length:50±0.5mm (not including tabs)
Width: 34±0.5mm
Thickness:8±0.2mm
Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
cycle time ≥500times

Product Features
  • Compact Dimensions: 50.0mm (L) × 34.0mm (W) ×10.5mm (H), ideal for embedded devices
  • Lightweight: Approximately 15g, suitable for portable applications
  • Standard Voltage: 3.7V nominal voltage compatible with most consumer electronics
  • Medium Capacity: 1500mAh nominal capacity for extended operation
  • Advanced Design: Polymer electrolyte and soft-pack aluminum-plastic film package makes it 20% lighter than liquid lithium batteries
  • Enhanced Safety: Overcharge/over-discharge protection, passed rigorous safety tests
  • Flexible Form: Supports bendable design (up to 90°) and custom shapes
  • Extended Life: Up to 5,00 cycles under optimal conditions (85% depth of discharge)
Main Applications
  • Smart Wearable Devices: Small smart bracelets, slim smartwatches, fitness trackers
  • Small Digital Audio-Visual Devices: Mini Bluetooth speakers, wireless Bluetooth earphone charging cases
  • Portable Medical Devices: Small pulse oximeters, fingertip blood glucose meters, mini massagers
  • Smart Home and IoT Terminals: Wireless door and window sensors, mini surveillance cameras
  • Outdoor Small Equipment: Mini headlamp, small GPS tracker, portable walkie-talkie
  • Mobile Terminal Accessories: Small mobile phone battery case, wireless charger with built-in battery
