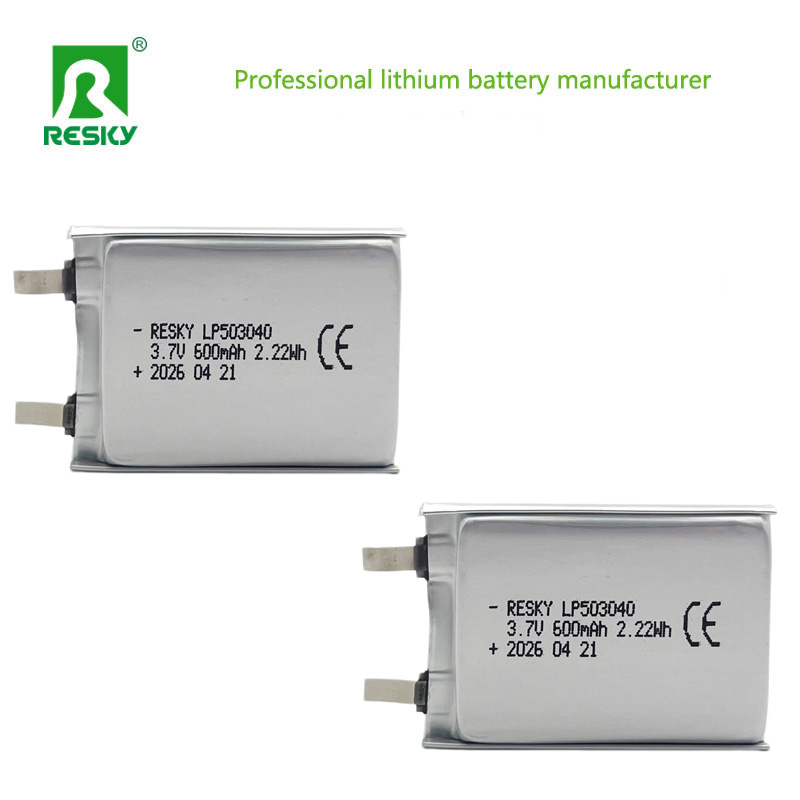

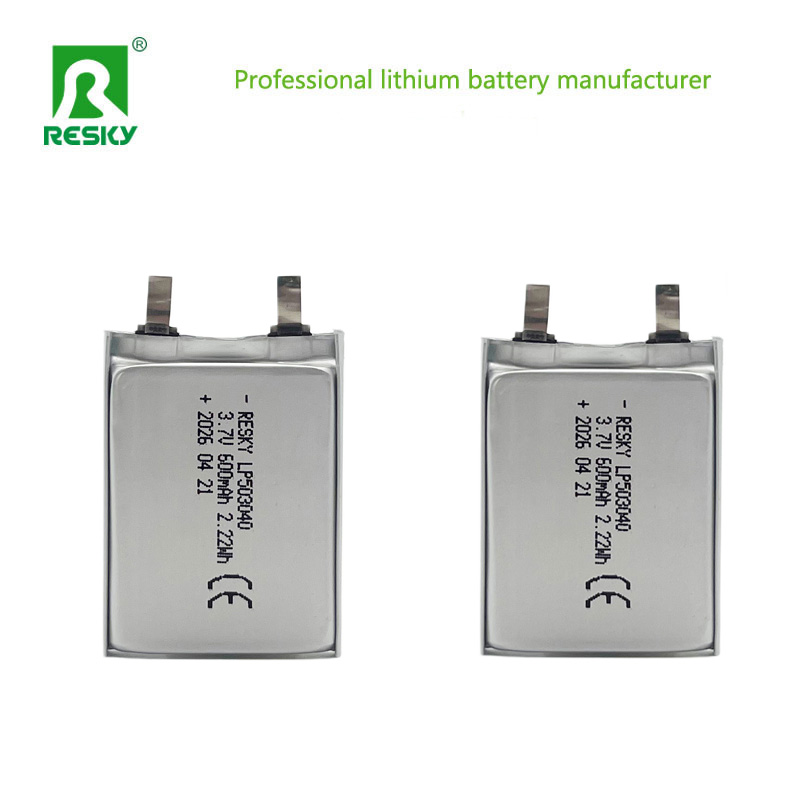

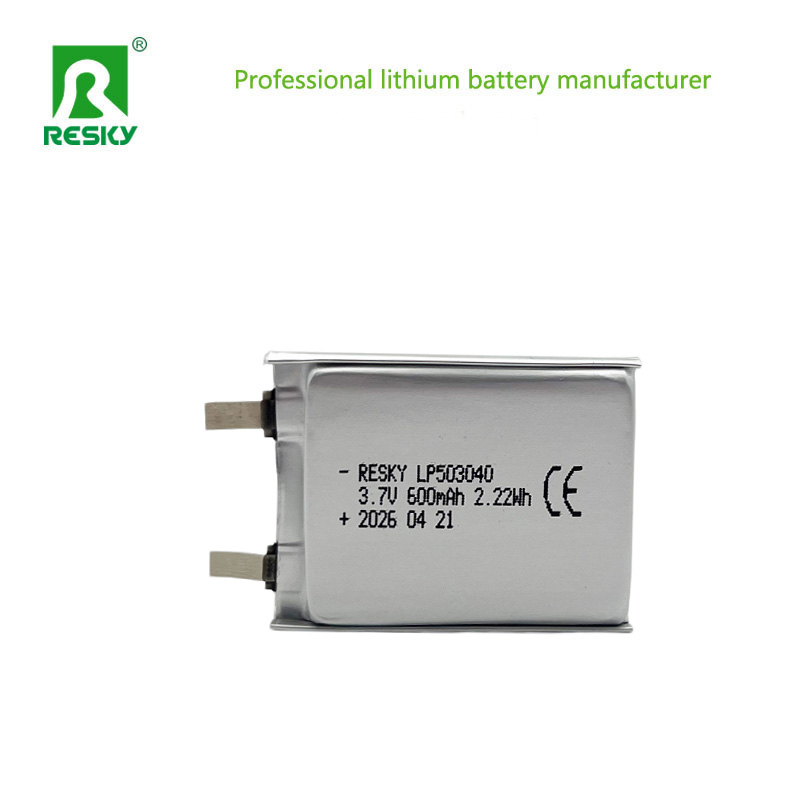

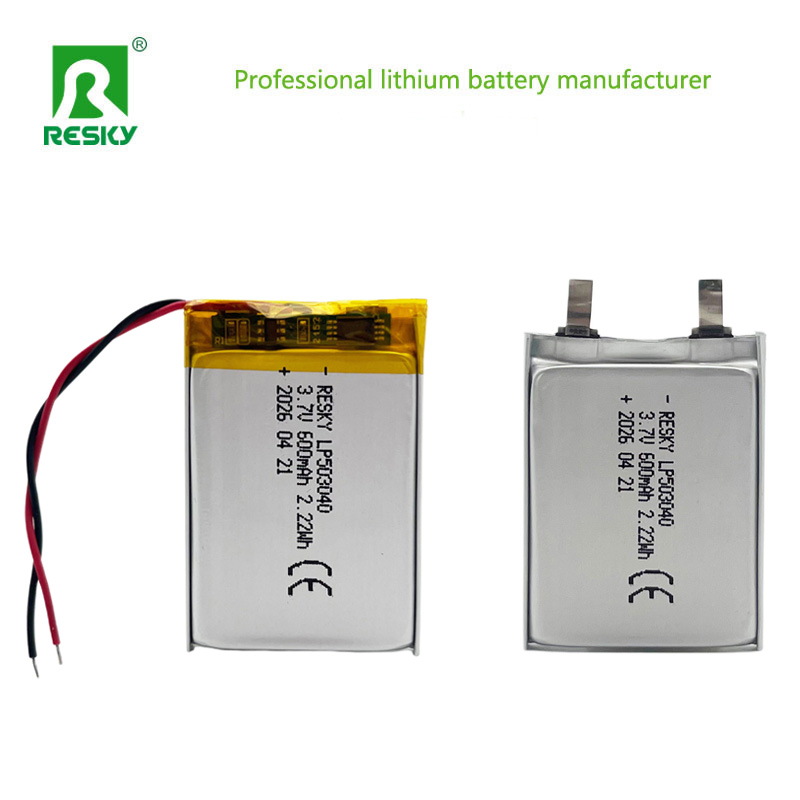

Factory 503040 600mAh 3.7V rechargeable Lithium Polymer Battery Cell for Smart Watch

Model:LP503040

Voltage:3.7v

Capacity:600mAh

Dimension:5*30*40mm

MOQ:100pcs

Delivery time:7-10workdays

Add to Wishlist
Add to Wishlist
Product Specifications

Item Specifications
Batteries 3.7V 600mAh LiPo Battery
Charge Voltage 4.2V
Nominal Voltage 3.7V
Nominal Capacity 600mAh (0.2C Discharge)
Charge Current Standard Charging: 0.5C
Rapid Charge: 1.0C
Standard Charging Method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time Standard Charging: 2.75 hours (Ref.)
Rapid Charge: 2 hours (Ref.)
Max Charge Current 0.5C
Max Discharge Current 1.0C
Discharge Cut-off Voltage 2.5V ±0.25V (0.2C)
Operating Temperature Charging: 0°C ~ 45°C
Discharging: 0°C ~ 45°C
Storage Temperature -10°C ~ +45°C
Dimensions Length: 40±2mm (excluding tabs)
Width: 30±0.5mm
Thickness: 5±0.2mm
Drop Test 1 meter drop onto concrete ground twice – No fire, no leakage
Cycle Time ≥500 cycles

Main advantages:

Compact size and lightweight:

High nominal voltage: 3.7V operating voltage, compatible with most low-power electronic circuits, no additional boost required.

High energy density: Ternary material system enables energy density of over 200Wh/kg.

Good cycle life: Supports approximately 300 charge-discharge cycles.

Good safety: Low risk of polymer electrolyte leakage; with a protection board, overcharge, over-discharge, and short-circuit protection are provided. Stable discharge performance: Low internal resistance, supports standard/maximum discharge current of 0.3A–0.6A, suitable for low to medium rate applications.

Main Applications:

Bluetooth headsets and TWS earphones

Smart wearable devices: such as smart bracelets, smart rings, health monitors

Miniature IoT devices: such as GPS trackers, shared bicycle lock modules, asset tags

Portable audio devices: small Bluetooth speakers, voice recorders

Medical electronic devices: such as thermometers, blood glucose meters, portable diagnostic instruments
