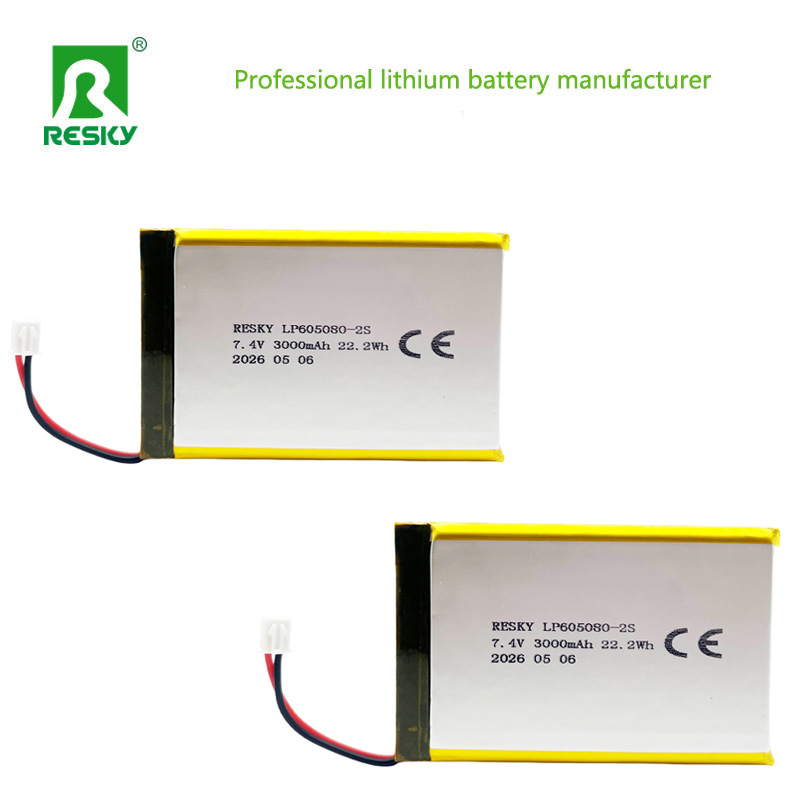

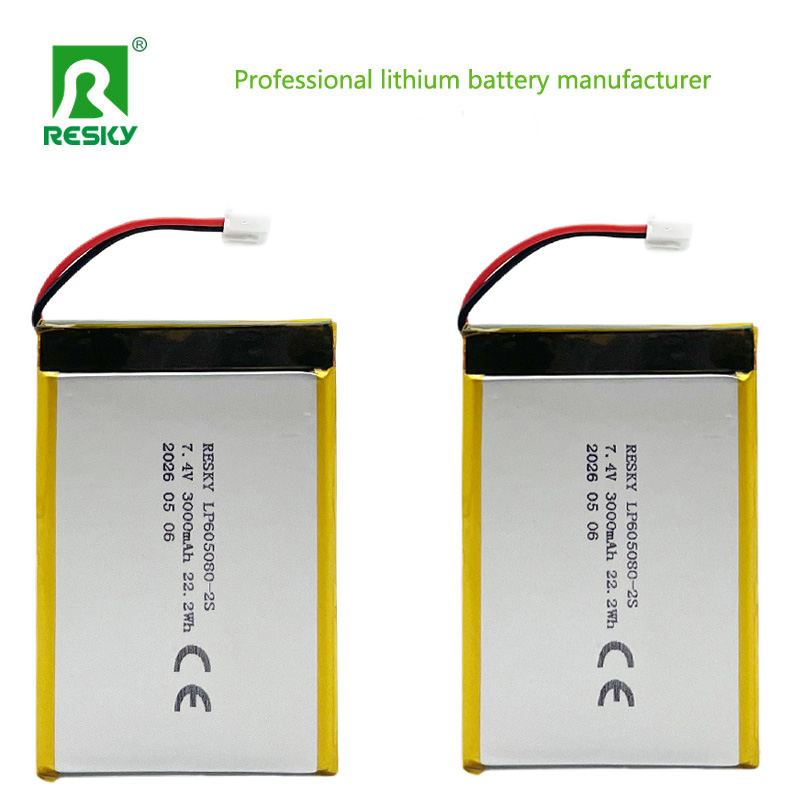

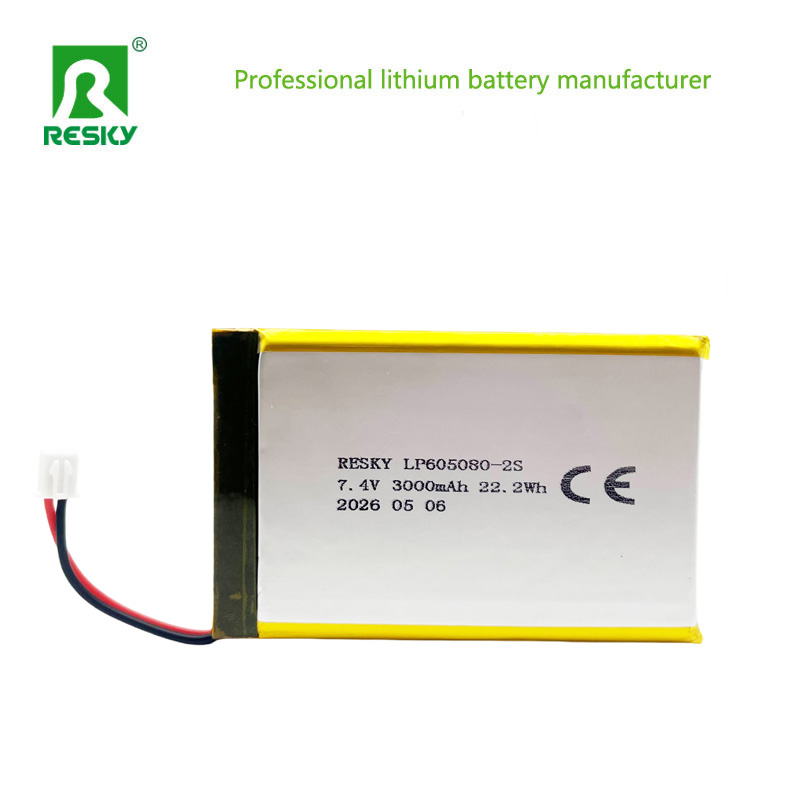

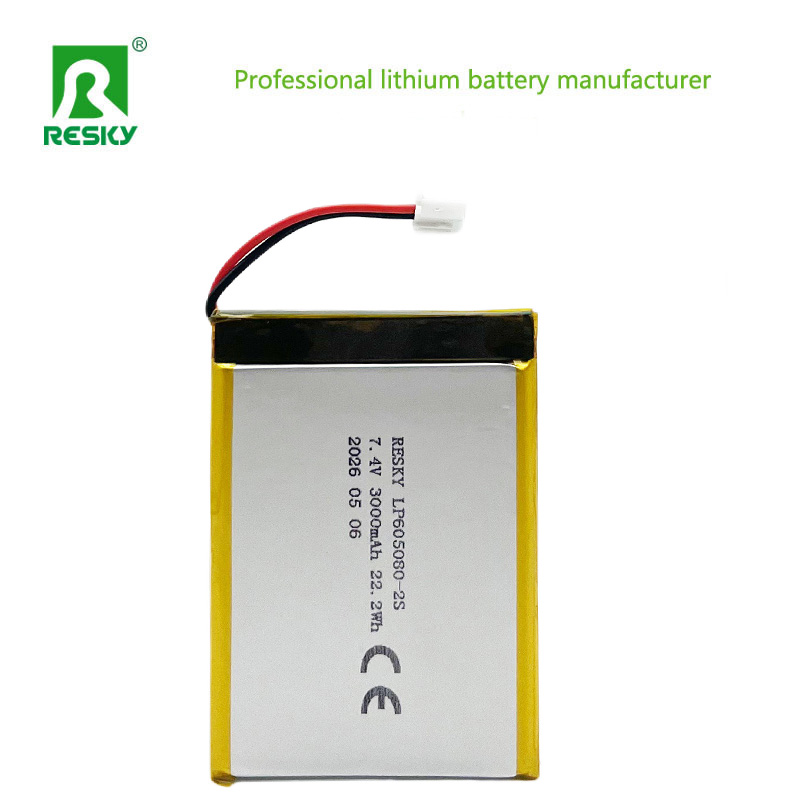

Lipo battery pack 605080 7.4v 8.4v 3000mAh 22.2Wh Rechargeable Lithium polymer battery for portable printer

Model:LP605080-2s

Voltage:7.4v

Capacity:3000mAh

Dimension:13*51*85mm

Connector type: XH2.54

MOQ:100packs

Delivery time:7-10workdays

Product Specifications

NO.	Items	Specifications
1	Batteries	7.4V 3000mAh Lipo Battery
2	Charge voltage	8.2V
3	Nominal voltage	7.4V
4	Nominal capacity	3000mAh 0.2C Discharge
5	Charge current	Standard Charging: 0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current) charge to 8.4V, then CV(constant voltage 8.4V) charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging: 2.75 hours (Ref.) Rapid charge: 2 hours (Ref.)
8	Max. charge current	0.5C
9	Max. discharge current	1.0C
10	Discharge cut-off voltage	2.5V±0.25V (0.2C)
11	Operating temperature	Charging: 0°C ~45°C Discharging: 0°C ~45°C
12	Storage temperature	-10°C ~ +45°C
13	Dimension	Length: 83±2mm (not including tabs) Width: 51±0.5mm Thickness: 13±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	Cycle time	≥500 times

Main Applications:

Miniature recording devices: such as law enforcement recorders, pocket cameras, industrial endoscopes, and head-mounted cameras.

Wireless communication and positioning devices: walkie-talkies, GPS terminals, and Bluetooth audio devices.

Smart wearable and medical devices: portable medical instruments and health monitoring devices.

Consumer electronics: Bluetooth speakers, tablets, e-readers, and portable projectors.

Outdoor and emergency equipment: headlamps, searchlights, solar charging systems, and self-defense gear.

Key Advantages

Safety: Polymer electrolyte provides better thermal stability, reducing risk of thermal runaway
No Liquid Leakage: Solid polymer electrolyte eliminates leakage risks, making them more reliable
Low Self-Discharge Rate: Retains charge longer when not in use, ideal for infrequently used devices
High Efficiency: 80-90% charge/discharge efficiency for better energy utilization
