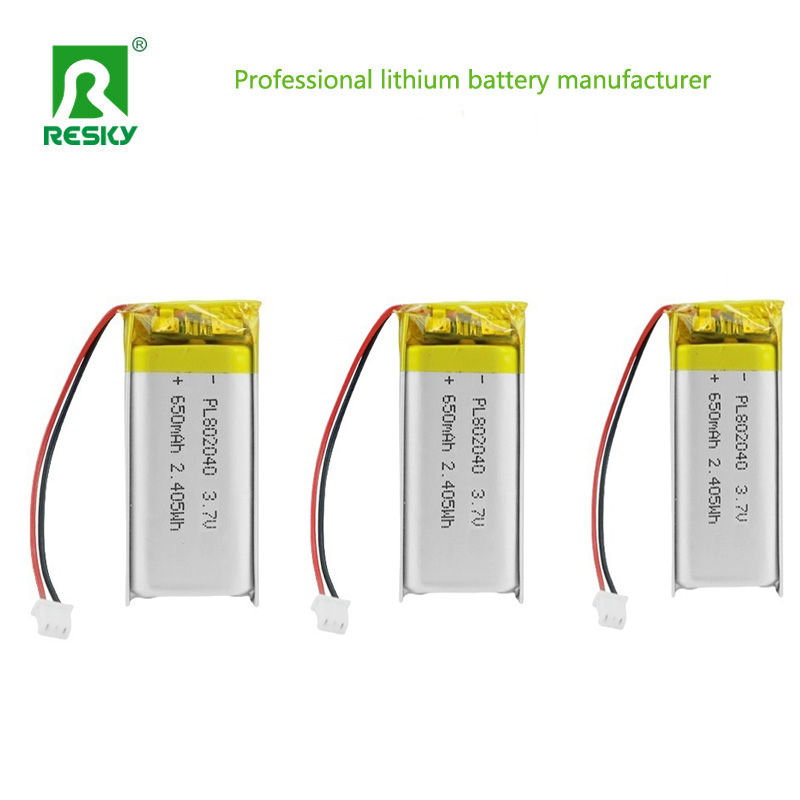

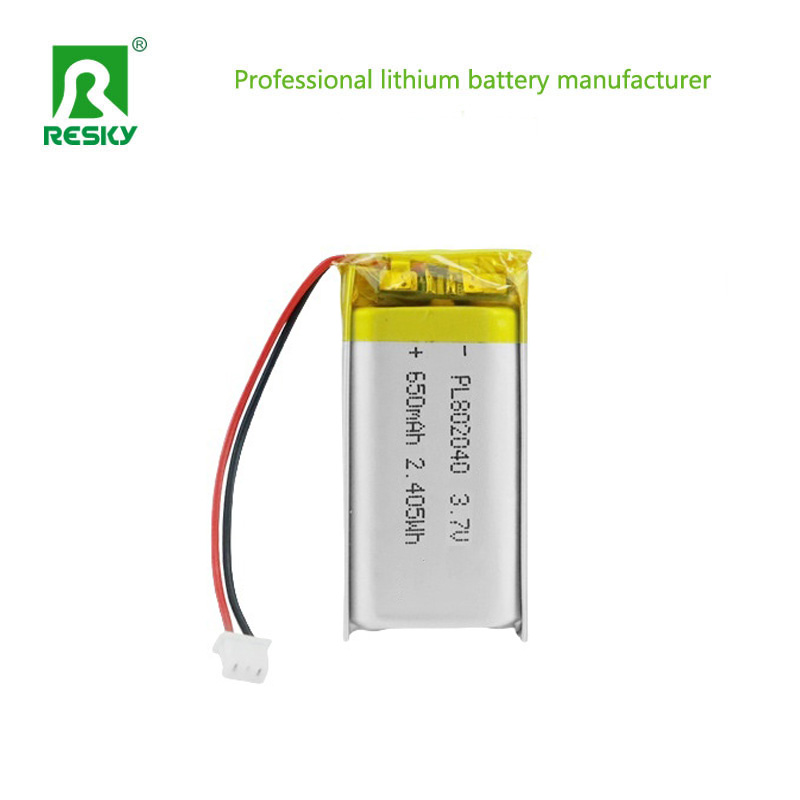

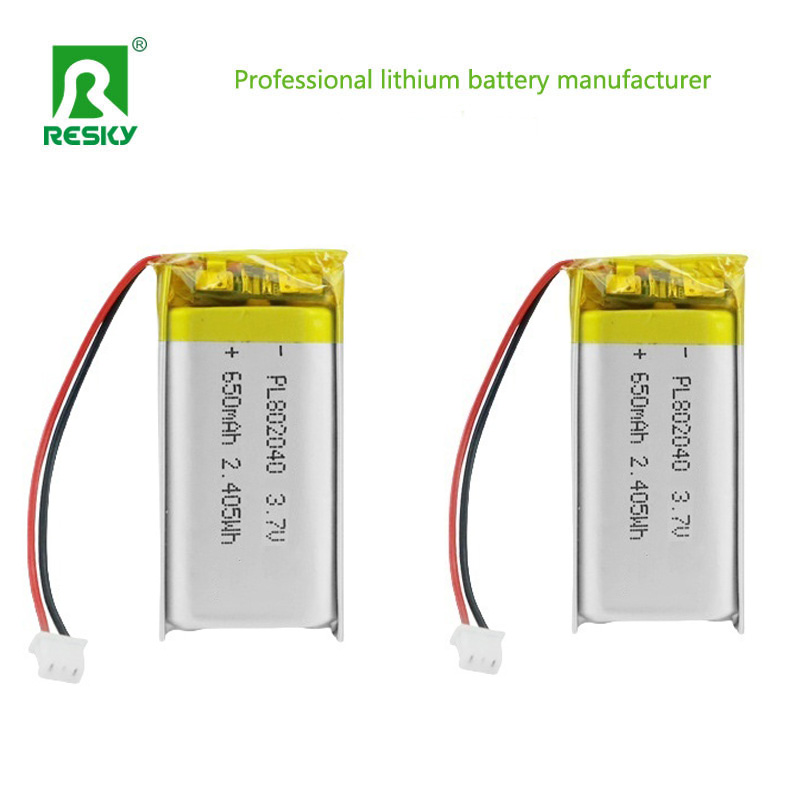

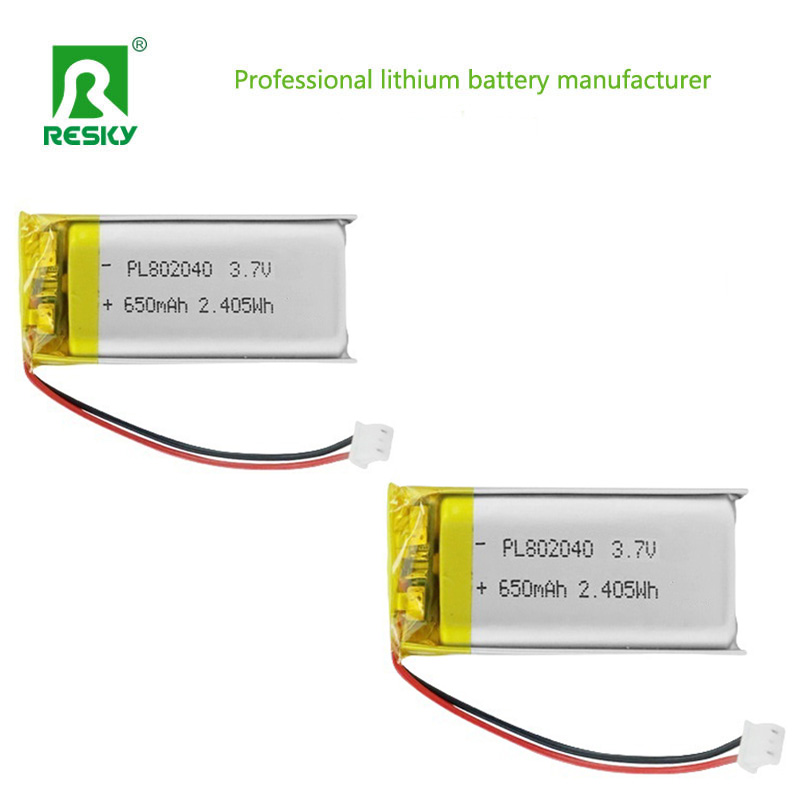

Li-polymer battery cell 802040 3.7V 650mAh Rechargeable Lithium Ion Polymer Battery For Bauty Device

Voltage:3.7V

Capacity:650mAh

Dimension:8*20*40mm

Add to Wishlist
Add to Wishlist

Specification:

NO. Items Specifications
1 batteries  3.7v 650mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 650mAh     0.2C Discharge
5 Charge current

Standard Charging:0.5C
Rapid charge:     1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time

Standard Charging:2.75hours(Ref.)
Rapid charge:     2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.75V(0.2C)
11 Operating temperature Charging:  0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13  Dimension Length: 40±2mm (not including tabs)
Width: 20±0.5mm
Thickness:8±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

Application:

Smart devices:
Suitable for devices with moderate battery life requirements such as fingerprint locks, cervical massagers, microphones, etc. The battery has a standard voltage of 3.7V and supports working in an environment of -10~60℃. The cycle life is up to 500 cycles, which can meet daily use needs. ‌

Consumer electronics:
Can be expanded to small household appliances such as aromatherapy machines and beauty devices. Its lightweight design (10×20×40mm) and low-temperature working characteristics (-10℃ start-up) are suitable for outdoor scenes in winter. ‌

Industrial scene:
Outstanding performance in medical equipment (such as detectors, scanning pens). The battery has high consistency and low self-discharge characteristics (monthly self-discharge rate ≤5%), and can maintain stable performance after long-term storage.

How to make sure the qualtiy:

 A-grade battery cells:
Use high-quality raw materials, sufficient capacity, long battery life, safe and non-explosive, non-inflating, and fully automated manufacturing.
High-performance protection board
Use high-strength protection board, stable voltage output to support current (use protection board according to battery output), prevent overcharging, over-discharging, and short circuit.

International standard lead wire:
Use high-quality wire, strong conductivity, not easy to break, can support high-probability discharge.

Wide nickel tabs:
Use high-quality tabs, good thermal conductivity and electrical conductivity, reduce heat generation, and stable current output.
